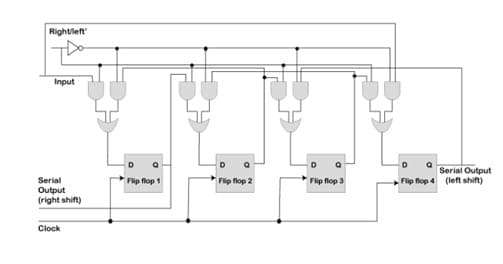

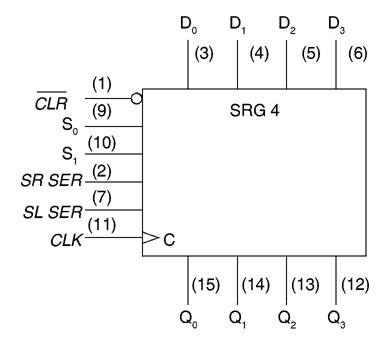

Universal Shift Register Question & Answers July 23, 2022 By WatElectronics This article lists 50 Universal Shift Register MCQs for Engineering Students. The Universal Shift Register Questions & Answers below include solutions and links to the relevant topic. This is helpful for users who are preparing for their exams and interviews, or professionals who would like to brush up on the fundamentals of the Universal Shift Register. The shift registers as a universal means it can do left shift and right shift, so in either way, we can shift the data by using universal shift registers. The four operations can be performed using a universal shift register that is no change register operation, shift left & shift right registers operations, and parallel load operations. We use the selection lines S0 and S1 to do the register operations. When S0 and S1 selection lines are equal to zero then will perform no change operation which means the register will not perform any operation. When S0 is one and the S1 selection line is zero then will perform shift right operation. When selection line S1 is one and S0 is zero then will perform shift left operation. When both the selection lines are one then it performs a parallel loading operation. If a register shifts the data from left to right or right to left, we call it a unidirectional shift register and if we have a register that can shift the data in both the directions from left to right and from right to left, we call it bidirectional shift register. Along with the bidirectional shift register, if we have parallel loading then that shift register, we will call a universal shift register. Name Email 1). How many types of shift registers are there? One Two Three Four None Hint 2). What is the standard form of PIPO? Parallel in Parallel Out Parallel in Positive Out Positive in Parallel Out None of the above None Hint 3). Which one of the following IC is an 18-stage shift register? IC 4006 IC 4014 IC 4015 IC 4021 None Hint 4). Which one of the following IC is an eight-bit serial in serial out shift register? IC 7491 IC 7495 IC 7499 IC 74166 None Hint 5). When S0=S1=0 then the operating mode in universal shift register is _____? Shift right Locked Shift left Parallel loading None Hint 6). Which one of the following shift registers are used for time delays? PIPO SIPO PISO SISO None Hint 7). How many operations does a universal shift registers can perform? One Two Three Four None Hint 8). Which one of the following shift registers is an eight-bit universal shift register? 74HC165 74HC595 CD4019B 74HC323A None Hint 9). What is the standard form of MDR? Memory Data Registers Memory Data Relays Memory Digital Registers None of the above None Hint 10). The figure shown below is a logic symbol of ________________ shift register? SISO shift register Universal shift register SIPO shift register None of the above None Hint 11). Which one of the following pins is a serial shift left data input pin in a 4-bit universal shift register pin diagram? Pin 7 Pin 0 to 3 Pin 13 to 15 None of the above None Hint 12). How many flipflops are required for registers to store eight-bit numbers? Two Four Six Eight None Hint 13). How many methods are there to shift the data? One Two Three Four None Hint 14). The figure shown below is a circuit diagram of ________________ shift register? SISO shift register Universal shift register SIPO shift register None of the above None Hint 15). What is the standard form of MBR? Memory Buffer Registers Memory Buffer Relays Memory Buffer Registers None of the above None Hint 16). How many bits does the below figure consists of? Two Three One None of the above None Hint 17). Which one of the following shift registers is used to convert the data from serial to parallel form? PIPO SIPO PISO SISO None Hint 18). Which one of the following IC is an four-bit bidirectional universal shift register? IC 74194 IC 74198 IC 7499 IC 74166 None Hint 19). Which one of the following IC is a four-bit universal shift register? IC 40104 IC 40195 IC 4015 IC 4021 None Hint 20). What is the standard form of PISO? Parallel in Serial Out Parallel in Sign Out Positive in Serial Out None of the above None Hint Universal Shift Register MCQs for Exams 21). Which one of the following IC is an eight-stage shift register? IC 4006 IC 4014 IC 4015 IC 4021 None Hint 22). Which one of the following IC is a four bits parallel in parallel out shift register? IC 7491 IC 7495 IC 7499 IC 74166 None Hint 23). When S0=S1=1 then the operating mode in universal shift register is _____? Shift right Locked Shift left Parallel loading None Hint Read more about Shift Registers 24). Which one of the following shift registers is used to convert the data from parallel to serial form? PIPO SIPO PISO SISO None Hint 25). Which one of the following shift registers is also called as serial to parallel converter? PIPO SIPO PISO SISO None Hint 25). How many flipflops does four-bit SISO shift register consists? One Two Three Four None Hint 26). The figure shown below is a circuit diagram of ________________ shift register? SISO shift register PIPO shift register PISO shift register None of the above None Hint 27). Which one of the following shift registers is a four-bit universal shift register? 74HC165 74HC595 CD4019B 54HC194 None Hint 28). Which one of the following IC is an eight-bit bidirectional universal shift register? IC 74194 IC 74198 IC 7499 IC 74166 None Hint 29). Which one of the following IC is four bits bidirectional parallel in parallel out shift register? IC 40104 IC 4014 IC 4015 IC 4021 None Hint 30). What is the standard form of SISO? Serial in Serial Out Serial in sign Out Sign in serial Out None of the above None Hint Universal Shift Register MCQs for Interviews None 31). Which one of the following IC is a dual four stage shift register? IC 4006 IC 4014 IC 4015 IC 4021 None Hint 32). Which one of the following IC is a four-bit bidirectional universal shift register? IC 7491 IC 7495 IC 7499 IC 74166 None Hint 33). When S0=1 and S1=0 then the operating mode in universal shift register is _____________? Shift right Locked Shift left Parallel loading None Hint 34). The figure shown below is a circuit diagram of ________________ shift register? SISO shift register PIPO shift register Bidirectional shift register None of the above None Hint 35). Which one of the following integrated circuits is an example for SISO register? IC 7491 IC 74164 IC 74165 IC 74194 None Hint 36). Which one of the following pins is a parallel data output pin in a 4-bit universal shift registers pin diagram? Pin 7 Pin 0 to 3 Pin 12 to 15 None of the above None Hint 37). Which one of the following integrated circuits is an example for SIPO register? IC 7491 IC 74164 IC 74165 IC 74194 None Hint 38). Which one of the following pins is a parallel data inputs pin in a 4-bit universal shift register pin diagram? Pin 7 Pin 0 to 3 Pin 13 to 15 None of the above None Hint 39). Which one of the following shift registers is a four-bit bidirectional universal shift register? 74HC165 74HC595 CD4019B 54HC194 None Hint 40). What is the standard form of SIPO? Serial in Parallel Out Serial in Positive Out Sign in Parallel Out None of the above None Hint Universal Shift Register MCQs for Students None 41). Which one of the following IC is an eight-bit static shift register? IC 4006 IC 4014 IC 4015 IC 4021 None Hint 42). Which one of the following IC is an parallel load eight-bit shift register? IC 7491 IC 7495 IC 7499 IC 74166 None Hint 43). When S0=0 and S1=1 then the operating mode in universal shift register is _____? Shift right Locked Shift left None Hint 44). Which one of the following shift registers is eight-bit SIPO shift register? 74HC165 74HC595 CD4019B 54HC194 None Hint 45). The figure shown below is a circuit diagram of ________________ shift register? Add description here! SISO shift register Universal shift register Bidirectional shift register None of the above None Hint 46). Which one of the following integrated circuits is an example for PISO register? IC 7491 IC 74164 IC 74165 IC 74194 None Hint 47). Which one of the following integrated circuits is an example for PIPO register? IC 7491 IC 74164 IC 74165 IC 74194 None Hint 48). Which one of the following pins is a serial shift right data input pin in a 4-bit universal shift register pin diagram? Pin 7 Pin 2 Pin 13 to 15 None of the above None Hint 49). Which one of the following shift registers is eight-bit PISO shift register? 74HC165 74HC595 CD4019B 54HC194 None Hint 50). Which one of the following shift registers is also called as parallel to serial converter? PIPO SIPO PISO SISO None Hint Please fill in the comment box below. Time's up
